Manufacturers and Exporters of Mineral Water Plant, Waste Water Treatment Plant with Turnkey Supply, Solution and Consultancy

Filtration System

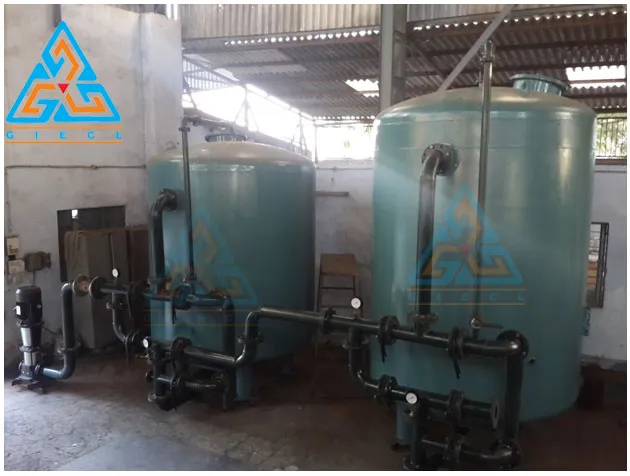

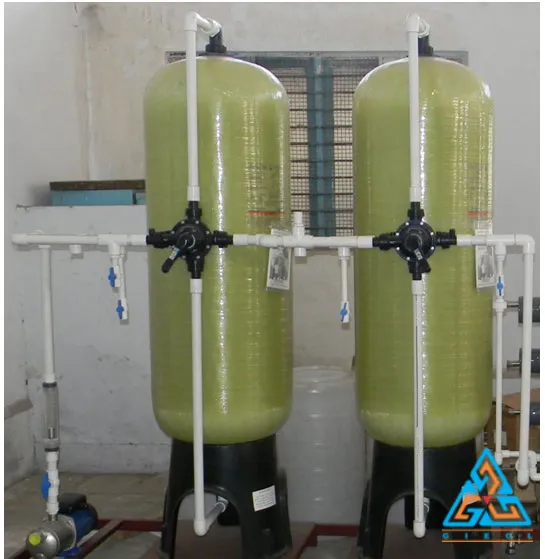

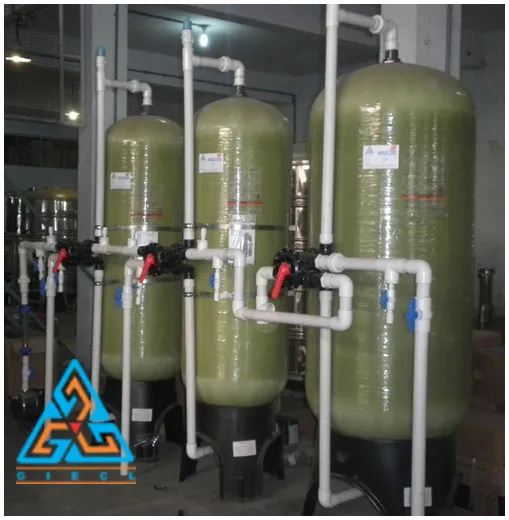

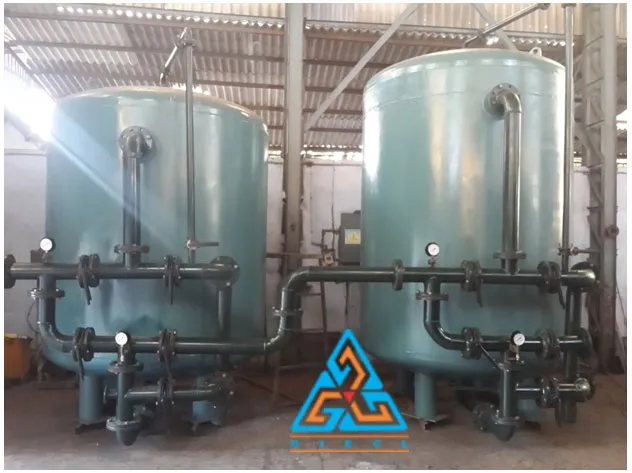

Dual Media Filters and Softening: - DMF & SOF

A dual media filter is essential for removing the turbidity and present in water. The contaminants could be in the form of suspended solids and turbidity as low as 10 to 20 microns which can be quite challenging to remove. GIECL manufactures dual media filters that enable efficient particle removal using a high filtration rate. Our range of dual media filters are precision engineered and we source only high quality raw material from authentic and genuine vendors from across the world. These filters provide initial treatment to the basic raw water and it is the first stage of the filtration Process.

Our dual media filters are equipped with Granule Activated Carbon which removes colour, odour, metallic impurities, organic, inorganic and residual chlorine content from Municipal supplies or any other source of water thus ensuring complete water purification>. All our dual media filters and softening filters are designed and manufactured in accordance with the requirements and specifications of our clients.

GIECL also deals in the best quality and high efficiency water softeners. This water treatment process is used for removing the hardness in water (treating hard water) and is generally referred to as a water conditioner. Raw water carries Ca and Mg ions which leads to its hardness and hence making it unfit for consumption or any other application. Water softening procedures can help avoid the harmful effects that hard water can cause.

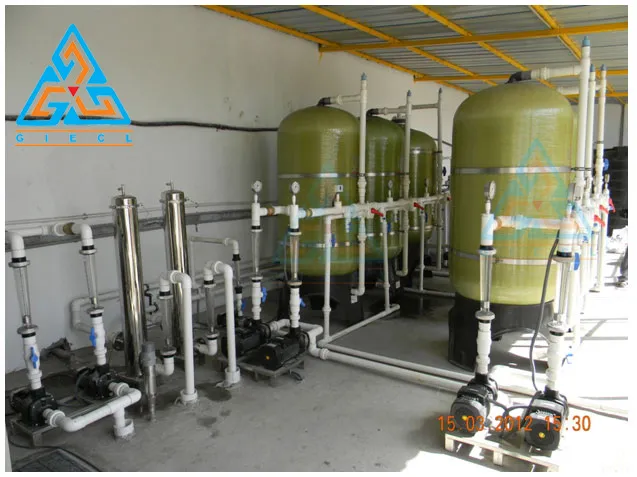

Water Filtration Plant

We are involved in designing a high-grade Drinking Water Filtration Plant that is made from quality raw materials. It treats raw water, which contains undesirable sediments, colour, algae and other harmful organisms. Thus, provides safe water for drinking. The mixture of water and chemicals is strongly agitated a second time before being distributed by a channel into one of the three flocculation tanks. Here, large horizontal paddles rotate slowly to encourage and form and grow bigger. From the flocculation tanks, the water moves into the sedimentation tanks. GIECL is a renowned name in the market for offering end-to-end solutions for water filtration plant. GIECL caters for an entire range of systems developed and produced by a young and enthusiastic team with experience of almost a decade. We have successfully created a position in the domestic and international market.

Our water softening machineries can treat and soften water at a high flow rate and ensure riddance from its hardness making it suitable for usage.

We offer the following water purification systems in this category:-
Spring Water Filtration Plant
Swimming Pool Filtration
High Flow rate Water Filtration System


Spring Water Filtration Plant
Swimming Pool Filtration
Purification Water Filter
Filtration Water Purification
Filtration Purification Water

Product Details

Product Range Available

1 M3/Hour to 100 M3/Hour and Above.

Material of construction

Stainless Steel - 316, 304, Fiber Glass (FRP) and Mild Steel with Rubber Line

Filtering Media

Pebbles, Gravels, Quartz Silica, Fine Sand, Activated Carbon

Ion Exchange Resin

NA + Strong Acid Cation Resin

System Operation

Manual and Fully Automatic Operation available

Spring Water Filtration Plant: - SWFP

Product Details
Treatment Scheme Chlorination, Feed Pump, Multi Grade Sand Filter, Granule Activated Carbon Filter, Micron Cartridge Filters, U.V.System, Ozonetor, Ozone Mixing Tank & Pumps, Storage Tanks.
Product Range 1M3/Hour to 100 M3/Hour and Above
Material of construction Stainless Steel - 316, 304, Fiber Glass (FRP) and Mild Steel with Rubber Line
Filtering Media Pebbles, Gravels, Quartz Silica, Fine Sand, Activated Carbon

Swimming Pool Filtration:-SPF

Swimming Pool Filtration
Swimming Pool Filtration

High Flow rate Water Filtration System

High Flowrate Water Filtration System

Product Details

Product Range Available 5 M3/Hour to 20 M3/Hour and Above.
Material of construction Fiber Glass (FRP) and Mild Steel with Rubber Line
Filtering Media Pebbles, Gravels, Quartz Silica, Fine Sand, Activated Carbon
System Operation Manual and Fully Automatic Operation available
